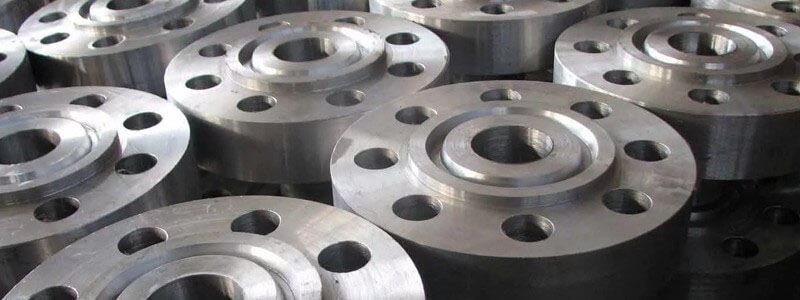

Nirvaan Overseas is the one of the leading Flanges Manufacturer, Supplier, Dealer, Exporter & Stockist in India. We offer a wide range of Flanges for all your needs, from standard Flanges to custom-made Flanges. We have the expertise and experience to provide you with the perfect Flanges for your application.
Nirvaan Overseas is a privately held company that manufactures Flanges to national and international standards. In India, you can get Flanges for a low price. Our Flanges comes in a number of diameters and can be cut and polished to meet your needs. Nirvaan Overseas is a known company for manufacturing and supplying excellent quality products like Flanges for a wide range of industrial applications include Chemical Industries, Oil & Gas Indutry, etc. We can also provide custom Flanges to meet the specific needs of their customers.
Nirvaan Overseas produces a wide variety of Steel products, including Flanges Products. Flanges is a versatile material that is used in a variety of industries. It is known for its durability and resistance to corrosion. Our company also offers a wide range of products including Sheets, Tubes & Round Bars.
Flanges are finished to meet the standards of the client in terms of dimensions and wall thickness, as well as heat treatment for more demanding applications. In general, Flanges are made in accordance with current API, ASTM, and ASME standards. We are also manufacturer of Fasteners.
| Flanges | Specifications |
|---|---|
| Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Size | 1/4” NB to 24" NB (above 24” as per customers requirement) |
| Flanges Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Flanges |
| Flanges Pressure in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Flanges |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Flanges |
| Flanges Manufacturing Method | Forged / Threaded / Screwed / Plate |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flanges Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Grades | |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | S32750 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Alloys A286 | ASTM A 453,AMS 5858,ASTM A 638 |
| Alloys 20 | ASME SB-462 - SB-464,ASME SB-468,ASTM B 462 - B 464,ASTM B 468,ASTM B 472 - B 474,ASTM B 751 |
| 254 SMO | A-276,A-484,A-479 |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Brass | C510, C51000,C220, C22000,C798, C79800 |
| Bronze | C725, C72500,C544, C54400,C752, C75200 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Copper Nickel | 70-30 Copper-Nickel (C71500, CW354H),90-10 Copper-Nickel (C70600,CW352H) |
| Invar | α (20–100 °C) of about 1.2 × 10–6 K–1 (1.2 ppm°C) |
| AL6XN | UNS N08367 |
| Incoloyl | Incoloy 800, 800H, 800HT; Incoloy 825; and Incoloy 925. |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tantalum | Tantalum - Grade 1. |
| Monel | Monel 400, Monel k500 |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 |
| Copper Alloy | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 |
| Type | C | Mn | P | S | Si | Cr | Ni | Mb |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | – |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | – |
| 304L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | – |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | – |
| 309S | 0.08 | 2.00 | 0.045 | – | 1.00 | 22.00/24.00 | – | – |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | – |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 316L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| Property | ASTM A105 | ASTM A350-LF2 |
|---|---|---|
| Tensile Strength Min, psi | 70,000 | 70,000-95,000 |
| Tensile Strength Min, N/mm² | 485 | 485-655 |
| Yield Strength Min, psi | 36,000 | 36,000 |
| Yield Strength Min, N/mm² | 250 | 250 |
| Elongation (%) | 22 | 22 |
| Reduction of Area (%) | 30 | 30 |
| Hardness, maximum | 187 | 15/12 ft-lbs |
| CVN at -50℉ | 20/16 joules | |
Our brand name, Nirvaan Overseas, stands for on-time deliveries, competitive pricing, and high-quality Flanges, and our buyers are familiar with it. Flanges has also been delivered to a variety of locations and businesses throughout India. If you have any questions about the products or services, send us an email at sales@nirvaanoverseas.com or a WhatsApp message at +91 77386 88058 with your specifications.
| Product supplied | City |
|---|---|
| Flanges Supplied To Oil & Gas Industry | Rajkot, Gujarat |
| All types of Flanges Supplied | Ahmedabad, Gujarat |
| Stainless Steel Flanges | Delhi, New Delhi |
| Carbon Steel Flanges | Chennai, Kolkata, Pune |
Our Company is one of India's leading Flanges Manufacturers, Suppliers, and Stockists due to its dependability and performance. Flanges is delivered to a variety of customers in Indian ports on a monthly basis in a capacity of 45 containers. Our products can be found in a variety of stores around India.
We are globally recognised and promising Flanges Exporter. Our products are shipped to a range of countries for our newly obtained clientele. We have a large selection of products. While delivering Flanges, we are able to match our customers' needs and preferences due to our ready supply of Flanges.
